FEATURES ROBOSCOP VTM-5000/FRAME

ROBOSCOP VTM-5000/FRAME

The ultrasonic testing of the metals structure is based on measuring the propagation velocity of waves and attenuation in materials. The eddy current method for structure and material hardness gaging is based on relation of specific electric conductivity to their physical properties.

The module-construction makes it easy to adapt the complex to any production conditions. The special software makes it easytocustomize for various products testing. Incoming dataprocessing and  product validity protocol issueis carried out from a remote terminal. All software has a convenient and intuitive interface.

ADVANTAGES:

• strict compliance with requirements and conditions of technological process
• testing time reduction
• precision transducers positioning at testing points
• non-failure operation ensuring continuoustechnological testing process
• human factor is excluded
• testing results processing and archiving
• remote control capability
• test pieces automatic sorting

The high accuracy of measurement is achieved by latest developments in the laser scanning and mathematical processing of measurement results. Great experience in implementation of own developments at material mechanical properties analysis allows to choose the optimal testing method for each of material. Efficiency of complex ROBOSCOP VTM-5000/FRAME has been proved by successful operation at foundries.

The system set:

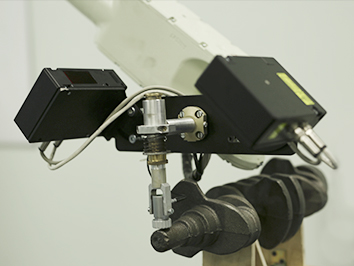

• robot manipulator

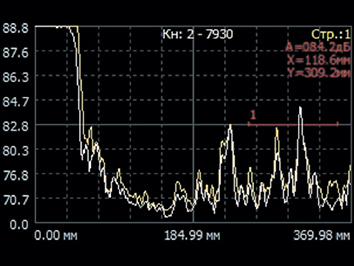

• ultrasonic flaw detection channel
• eddy-current flaw detection channel
• high-precision laser 2D scanners
• specialized software
• control terminal
• moving mechanism

Besides the automated testing-system, the specialized testing software can be installed into portable serial flaw detectors UD4-ТМ and DAMI-С09 .
