ROBOSKOP VTM-5000/KP
TESTING METHODS AND PROBES (PDF)

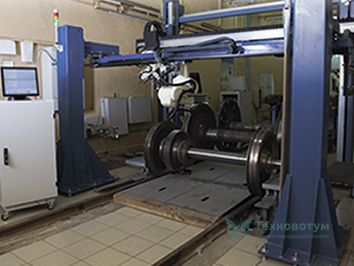

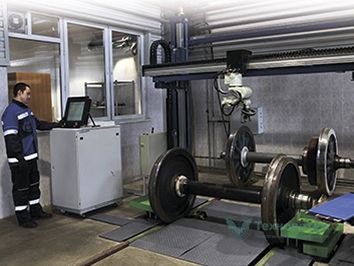

The laser scanning and flaw detection test bench ROBOSKOP VTM-5000/KP is used for a complete non-destructive testing cycle of wheelsets with any type of axes (RU1, RU1SH, PB2SH, PM5, etc.). Is used for the current, average or major repairs in accordance with the methodical requirements of Russian Railway norms. It is also possible to adapt the ROBOSKOP VTM-5000/KP to any national or industrial testing requirements. A flexible system of settings allows forming any sequence of tested wheelset parts as well as the selective monitoring of individual zones.

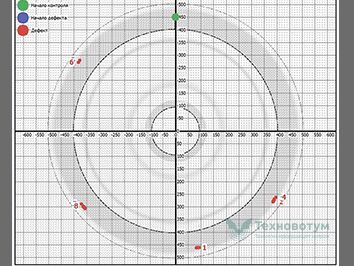

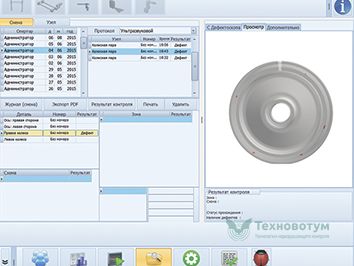

Ultrasonic and eddy-current testing methods are simultaneously available. The probes are automatically changeable during operation. Laser measurement of wheelset part geometry includes the mandatory measurement of each wheel surface's profile: rim, pre-rim zone, flange, wheel diameter and inter-band distance, additional analysis of roll surface to detect cracks and holes. All testing parameters and measurements are consolidated into one final protocol with visual and tabular deciphering, forming an electronic wheelset certificate.
PROBE UNIT SETS:
P131-2.5-0/20-O 121-2.5-40/50-B P121-2.5-50(2)-O
Description of probe unit | Probes | Methods | Intention |
---|---|---|---|
For ultrasonic testing | |||
П131-2,5-0/20-О | P131-2,5-0/20Р | AR1.1, AR 1.2, AR 1.3 | Testing of axles |
П121-2,5-40/50-Б | P121-2,5-40Р P121-2,5-50Р |
R3.1 DR3.2 DR 3.3 |
Testing of bands and flanges |
П121-2,5-50(2)-О | P121-2,5-50Р P121-2,5-50Р |
AR3, AR3.1 | Testing of axles |
111-5,0(2)-О/Б | P111-5,0Р P111-5,0Р |
AR2, TR2 DR1.1 DR1.2 |
Testing of axles, bands |
П112-2,5/111-5,0-Б | P112-2,5Р P111-5,0Р |
DR2.1 DR2.2 |
Testing of axles |
П121-0,4-90-П | P121-0,4-90Р | DR4 | Testing of roll surface |
П121-1,25-90-Д/О | P121-1,25-90Р |
WR |
Testing of disc or axle surface |
П121-5-65-О | P121-5-65Р P121-5-65Р |
BR1 | Testing of axles |
П121-2,5-43/19-О | P121-2,5-43Р P121-2,5-19Р |
BR2 BR3 |
Testing of axles |
П121-2,5-43/19-О | P121-2,5-55Р | BR4 | Testing of axles |
For eddy current testing | |||
ВТП3-60-К6 | VTP3-60-К6 | Curvilinear surfaces | Planar parallel surfaces |
