СHAMELEON 32+ (32/64)
The ultrasonic flaw detector on phased arrays "Chameleon 32+" (32/64) support for PR + TOFD allows you to quickly and informatively carry out inspection with obtaining an image of the defect in the scanning plane. Phased array transducers and angular prisms are completed individually.

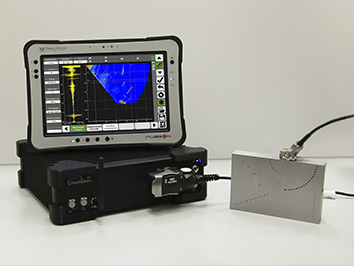

Adaptive software of Сhameleon 32+ (32/64) detector makes it possible to change quickly the laws of ultrasonic wave propagation and focusing. Software permits testing setup to be made in semi-automatic mode and contains Auto Dimension and Auto Protocol functions allowing testing report to be transformed into PDF file and sent immediately to control station by GSM communication. Execution option: Monoblock or separate hardware solution for industrial automation.

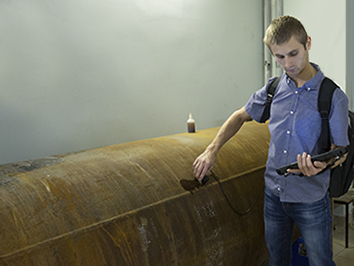

Сhameleon 32+ (32/64) detector is equipped with modern means of control and visualization with possibility of support of standard and specialized peripherals (tomographic scanners, flash drives, GPS receivers, Internet communication means, etc.). When scanner is connected, it records the covered distance (B-scan) with obtaining of coordinate scan. Long-time autonomous operation and protected housing provide detector operation in the field conditions.

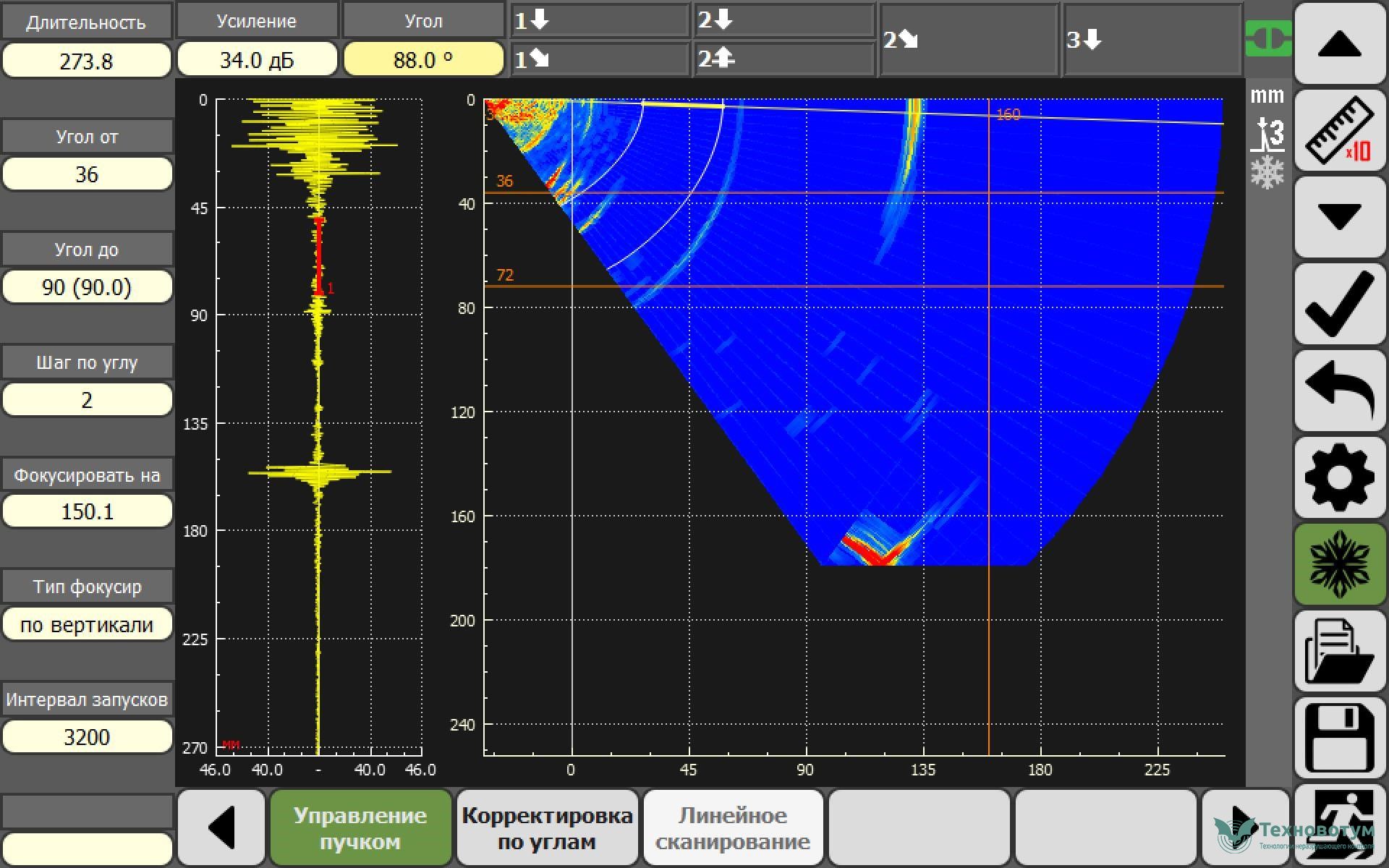

Three flaws in the rail welded joint.
Depth of location from 55 to 125 mm; visible from one PA position. Jelgava, NDT (non-destructive testing) Center of Latvian Railways.

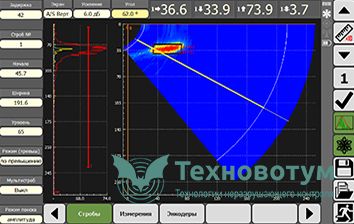

Flaw in the welded seam.

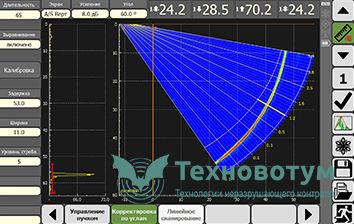

Application of function of signal accumulation and freezing on S-scan and А-scan.
